The roof structure

types and the wooden truss

Easy

The structures that support the roofs of buildings are made with the most diverse materials and techniques. Let's see the most common together.

The materials:

Wood and laminated wood
CLS reinforced concrete
Steel
Stone (eg trulli) and bricks

Technical:

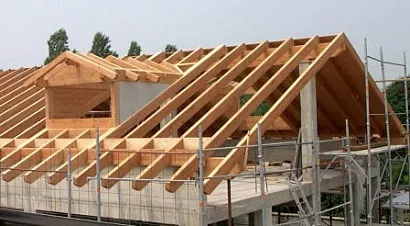

Ordinance of wooden beams and / or lamellar wood
Slabs joists and cast-in-place castings
Prefabricated elements
Beams and steel structures

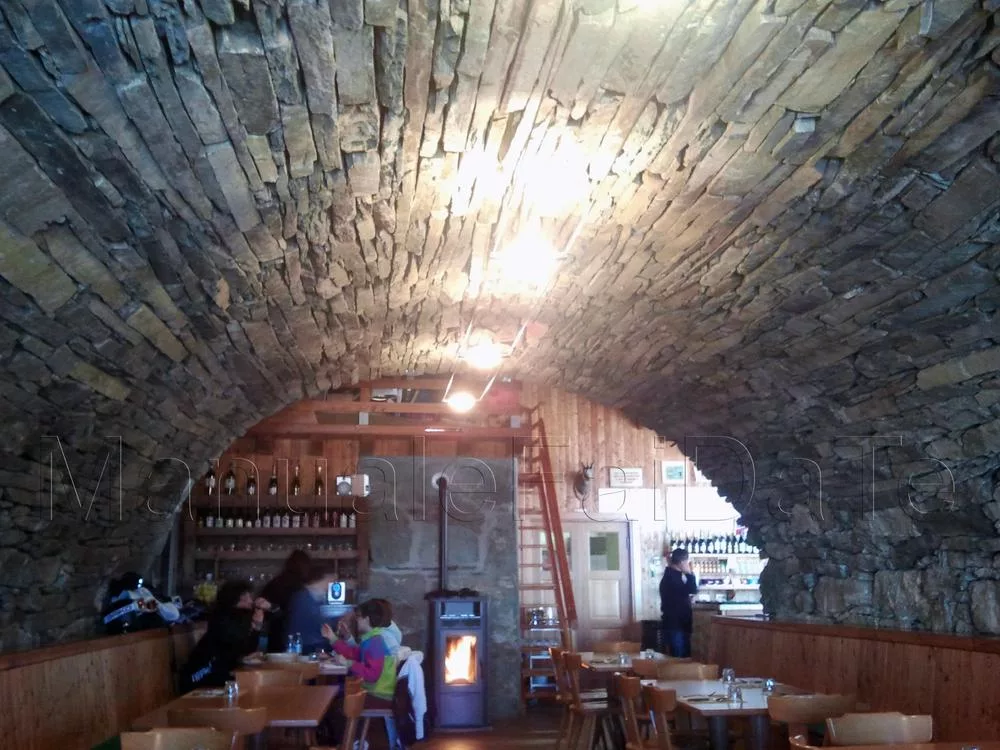

Brick or stone vaults

The truss

A traditional form of roof construction is that of using trusses. The beams placed in this way allow you to cover a greater light (distance) to the roof without using intermediate support points.

Even long truss structures are installed today, in these cases lamellar wood is used.

The parts that make up a truss have specific names, each one covering a specific function.

Chain, stretched section, sometimes can be made with metal pulls li>
Monaco, vertical element on which the roof ridge rests
Lightning, stiffen the truss structure
Strut, inclined beam on which purlins are fixed.
Arcarecci, joists joining the trusses
Panel or Beads, creates the base of support for the cover package above.

Materials and tools

Wood
Laminated wood
Reinforced concrete
Steel
Stone
Brick
Tiles
Beams
Purlins
Panels
