Whirlpool Dishwasher F8E1 Error: Repair Guide

The Whirlpool dishwasher, after years of excellent service, suddenly stopped working and displayed the dreaded F8E1 error code. Don't panic: this code indicates that the dishwasher is unable to fill with water. In this guide, I'll show you how I identified and fixed the problem, which was hiding in an unexpected spot.

F8E1 Error: What It Means and Possible Causes

The F8E1 error code on Whirlpool dishwashers indicates a problem with water filling. The most common causes are:

• Water inlet valve closed or partially blocked
• Clogged filters due to sand, limescale, or other deposits
• Aquastop (anti-flood device on the inlet hose) malfunctioning

First Check: Valve, Filters, and Aquastop

I checked all three points listed above, but everything was fine: the valve was open, the hose filters were not clogged, and the water pressure was normal. So the problem was not there.

Discovering the Pink Slime

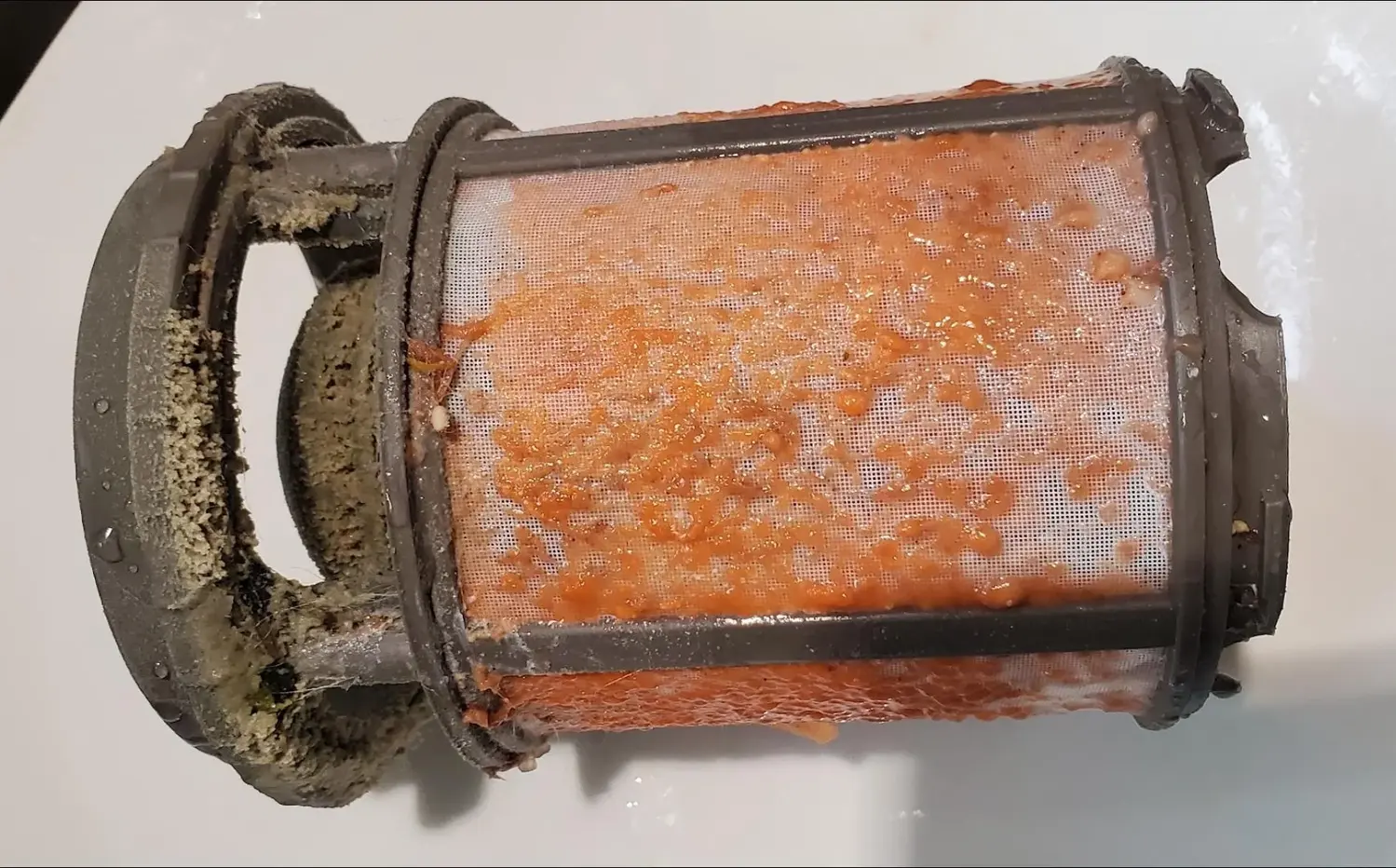

While inspecting the inside of the dishwasher, I noticed that the tub filter was covered with a strange pink slime. I thoroughly cleaned the filter and every visible component, but the problem persisted.

At that point, I tried manually pouring some water into the tub with a bucket. The dishwasher started, drained the water, but shortly after the F8E1 error returned. I was almost losing hope.

The Culprit: The Optical Water Level Sensor

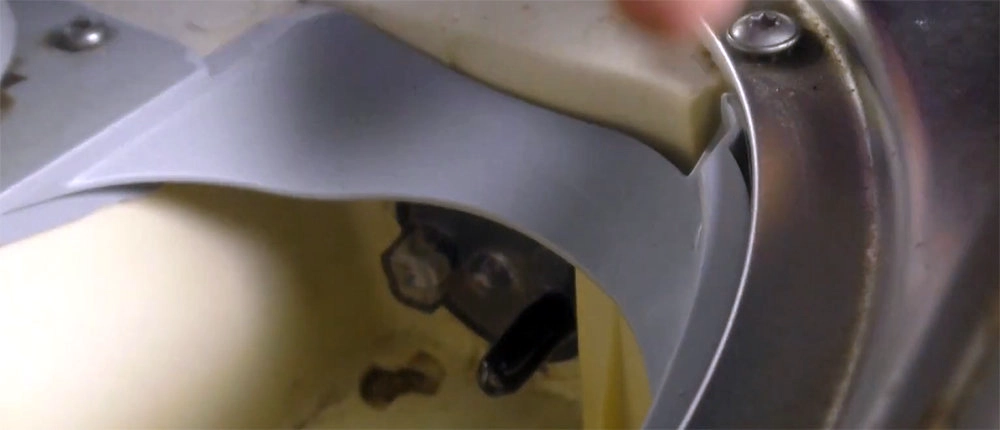

Searching through specialized forums, I discovered that Whirlpool dishwashers are equipped with an optical sensor that detects the water level inside the tub. This component is located at the bottom: by removing the filter, you can find it on the left side.

The optical sensor must be perfectly transparent and clean to function correctly. If it is dirty or covered with deposits, it cannot detect the water level and the dishwasher throws an error. And there it was: it was covered with the same pink slime found on the filter!

I cleaned it very carefully, using a soft non-abrasive cloth and taking care not to scratch the optical surface. Result: problem solved!

After this complete treatment, the dishwasher was as good as new and works perfectly. If you're also experiencing the F8E1 error, check the optical sensor: it could be the simplest and quickest solution! Cheers
